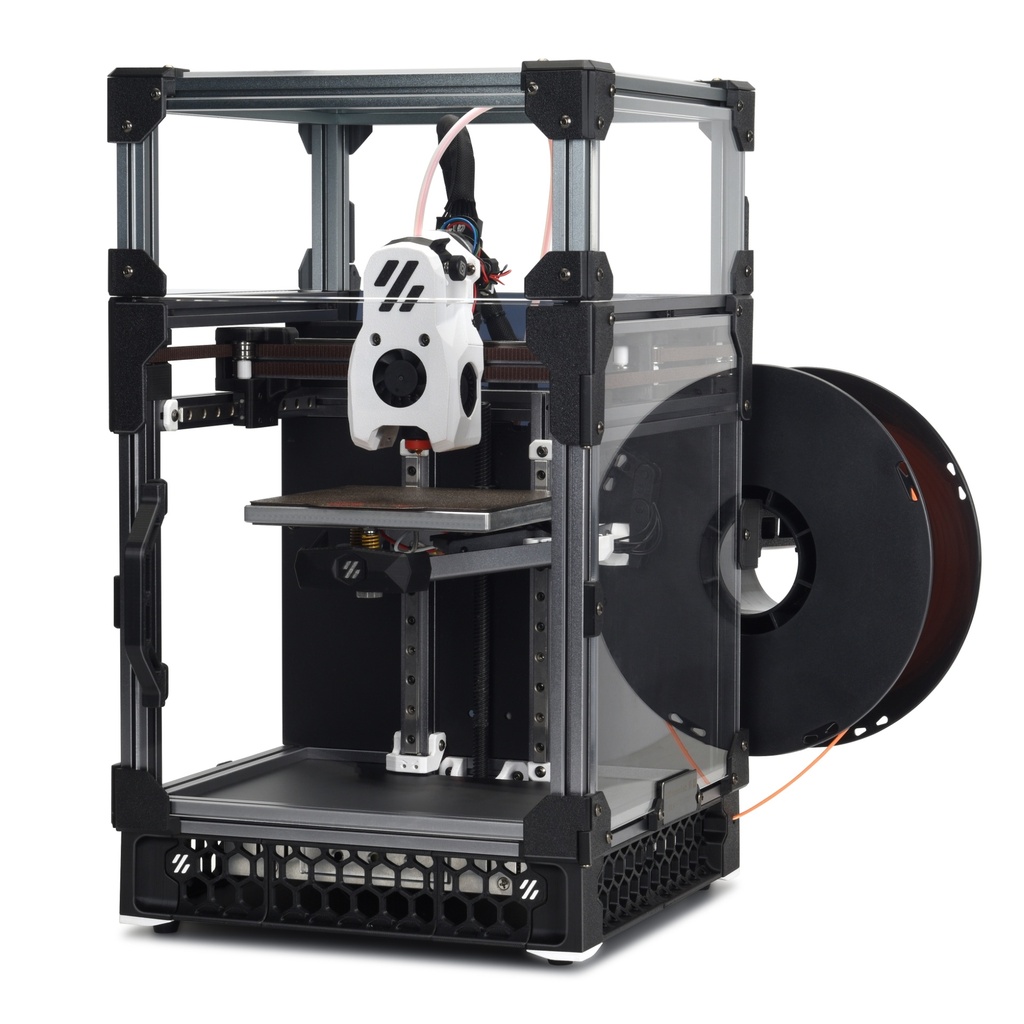

LDO Voron 0.2
The Voron Zero is a traditional CoreXY design with the bed moving along the Z axis. It has a tiny 120mm^3 print area, built with 1515 extrusions. It encloses naturally so printing ABS is possible. Currently, all single mechanical parts for Trident and V2 can be printed on a Voron Zero bed. The design accounts for stock Makerbeam XL extrusion lengths (which come tapped) and standard MGN7 linear rail lengths, so scaling the design will start to increase cost or labor involved with tapping. The bed is also cantilevered which will also restrict scaling. Current release is V0.2r1.
Kit contents:
Everything in the Voron BOM plus:
- Stainless Steel Linear Rails & HIWIN X Rails - No more worrying about rusty rails. Remember to properly lubricate your linear rails! In addition, we've thrown in a high quality HIWIN linear rail for the X axis.
- E3D Revo Hotend - We have collaborated with folks at E3D to bring the Revo Voron hotend to our Voron kits! Grey kits go with grey heatsinks while other kits go with custom blue heatsinks!
- Picobilical PCB - Picobilical is an in-house redesign of Timmit's V0-Umbilical Mod that is essentially a secondary mainboard! Picobilical greatly simplifies wiring and frees up extra ports on the mainboard.
- Linear Rail Mounting Bar - Our kit includes custom 7H size linear rail mounting bars to secure the linear rails onto the extrusions, (no need to fiddle with tiny m2 nuts on a thin plastic part)
- Brass Heatset Insert Tool - We've included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check here for more information.
- Pre-cut & Pre-wired - Our kit includes all necessary wiring: cut to just the right length and pre-crimped or soldered to their respective parts. See our supplementary wiring guide here..
- Threadlocked- All our set screws (grub screws) come precoated with threadlocker to prevent loosening of critical components.
- 2mm Drill Bit - Metric drill bits may not be very common in some parts of the world, so we included one. Use it to ream the filament path in your printed extruder parts.
- Kirigami Bed Holder - For the sake of easier assembly, maintenence and wiring, we've included the famous Kirigami bed holder mod by Christoph Mueller in all our kits.
- Slide-in nuts - We included these custom designed nuts in our kit so you don't have to pull any hairs out when you discover you forgot to preload a hex nut. It also makes modding on the V0 a breeze.
- Pre-assembled Build Plates - Our build plates come pre-assembled with 100W polyimide heaters that heater faster and report more accurate bed temperatures.
- 200W Power Supply - Our kits come with a 200W power supply instead of the standard 150W PSU.
What you need to source:
- Printed parts
